Economical BLDC Motor

Embrace the reliability of our Economical BLDC Motor, specially curated to cater to the demands of manufacturers, suppliers, and traders seeking immaculate performance at an extraordinary value. With over 29 years of experience, we proudly introduce a gorgeous range that features the New release FL42CBL60-IE Economical BLDC Motor, the ever-popular FL80BLE Economical BLDC Motor, the deal-worthy FL48CBL68 Economical BLDC Motor, the versatile FL38CBL Economical BLDC Motor, and the compact FL28CBLA Economical BLDC Motor. As one of the leading importers in All India, our supply ability covers the entire domestic market ensuring seamless support and access. Each model is crafted for impeccable energy efficiency, offering substantial cost savings with remarkable longevity and low maintenance. Equipped with quiet operation for noise-sensitive environments, these motors provide consistent, reliable torque for diverse industrial applications, outshining conventional alternatives in durability. Their compact design allows flexible installation without sacrificing performance, and advanced speed control technology guarantees precise adjustments for efficiency and user convenience. The Economical BLDC Motor is your one-stop solution for advanced automation, exceeding industry standards and delivering quality that is nothing less than immaculate.

FL80BLE Economical BLDC Motor

MOQ : 5 Units

  • Current Type
  • DC
  • Dimension (L*W*H)
  • Length : 50 mm
  • Power Rating
  • 100 W
  • Rated Voltage
  • 48 VDC
  • Speed
  • 5000 rpm
  • Torque
  • 0.2 mN.m

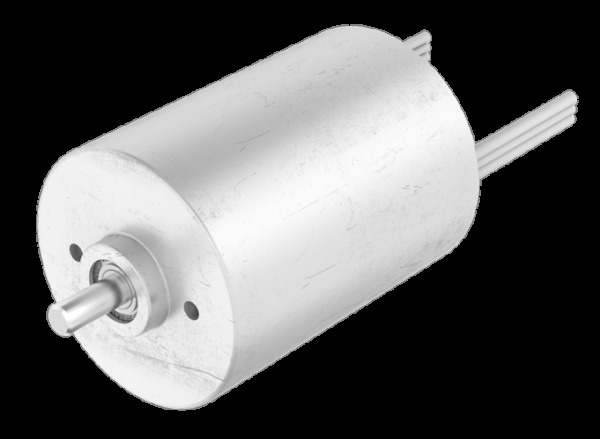

FL28CBLA Economical BLDC Motor

MOQ : 5 Units

  • Color
  • Silver casing
  • Current Type
  • 2.0 A
  • Dimension (L*W*H)
  • Length: 38 mm
  • Motor Type
  • BLDC
  • Power
  • 12 W
  • Product Type
  • Other, Economical motor
  • Rated Voltage
  • 24 VDC
  • Shaft Diameter
  • Approx. 4 mm
  • Speed
  • 4000 rpm
  • Torque
  • 28 mN.m
  • Weight
  • Lightweight design

FL38CBL Economical BLDC Motor

MOQ : 5 Units

  • Current Type
  • Rated Current: 4.8 A
  • Dimension (L*W*H)
  • Length: 58 mm
  • Power
  • 30 W
  • Power Rating
  • 30 W
  • Rated Voltage
  • 24 VDC
  • Speed
  • 4000 rpm
  • Torque
  • 70 mN.m

FL48CBL68 Economical BLDC Motor

MOQ : 5 Units

  • Color
  • Metallic silver
  • Current Type
  • DC
  • Dimension (L*W*H)
  • Length : 68 mm
  • Motor Type
  • Brushless DC
  • Mounting Type
  • Flange mount
  • Power
  • 60 W
  • Rated Voltage
  • 24 VDC
  • Shaft Diameter
  • Standard size
  • Speed
  • 3000 rpm
  • Torque
  • 0.18 NM
  • Voltage
  • 24 VDC
  • Weight
  • Lightweight design

FL42CBL60-IE Economical BLDC Motor

MOQ : 5 Units

  • Ambient Temperature
  • -10C to 50C
  • Bearing Type
  • Ball Bearing
  • Color
  • Silver
  • Cooling Method
  • Natural Air Cooling
  • Current Type
  • DC
  • Dimension (L*W*H)
  • 90 mm x 42 mm x 42 mm
  • Efficacy
  • IE2
  • Features
  • Economical, Compact Design, Maintenance Free, High Efficiency
  • Frequency (MHz)
  • 50 Hz
  • Horse Power
  • 0.094 HP
  • IP Rating
  • Other, IP40
  • Motor Type
  • Brushless DC Motor (BLDC)
  • Mounting Type
  • Screw Mount
  • Noise Level
  • < 55 dB(A)
  • Output Power
  • 70 W
  • Phase
  • Single Phase
  • Poles Number
  • 4
  • Power
  • 70 W
  • Power Rating
  • 70 W
  • Pressure
  • Other, Standard Atmospheric
  • Product Type
  • Other, Economical BLDC Motor
  • Protect Feature
  • Totally Enclosed
  • Rated Frequency
  • 50 Hz
  • Rated Voltage
  • 24 V DC
  • Sealed Type
  • Other, Sealed
  • Shaft Diameter
  • 8 mm
  • Speed
  • 3000 RPM
  • Standard
  • CE, RoHS Certified
  • Starting Type
  • Direct On Line
  • Torque
  • 0.223 Nm
  • Voltage
  • 24 V DC
  • Weight
  • 550 g
